Comical Fun Goes 4WD – Building the Tamiya Comical Avante GF-01CB

The team behind TamiyaBlog loves the Tamiya Comical and Fun models. It is not a secret. And secretly, we have been hoping for a 4WD comical buggy based on GF-01 for a long time. When the Comical Avante was actually presented at the Nuremberg Toy Fair 2020, we could hardly believe that Tamiya really did it.

The Avante, a Tamiya design icon of the 1980s, as a comical model. Can it go well?

In short, yes !

The original Avante has such an elegant, slim and technical design that I could hardly imagine how even a comical body could fit on the current and relatively wide GF-01 chassis.

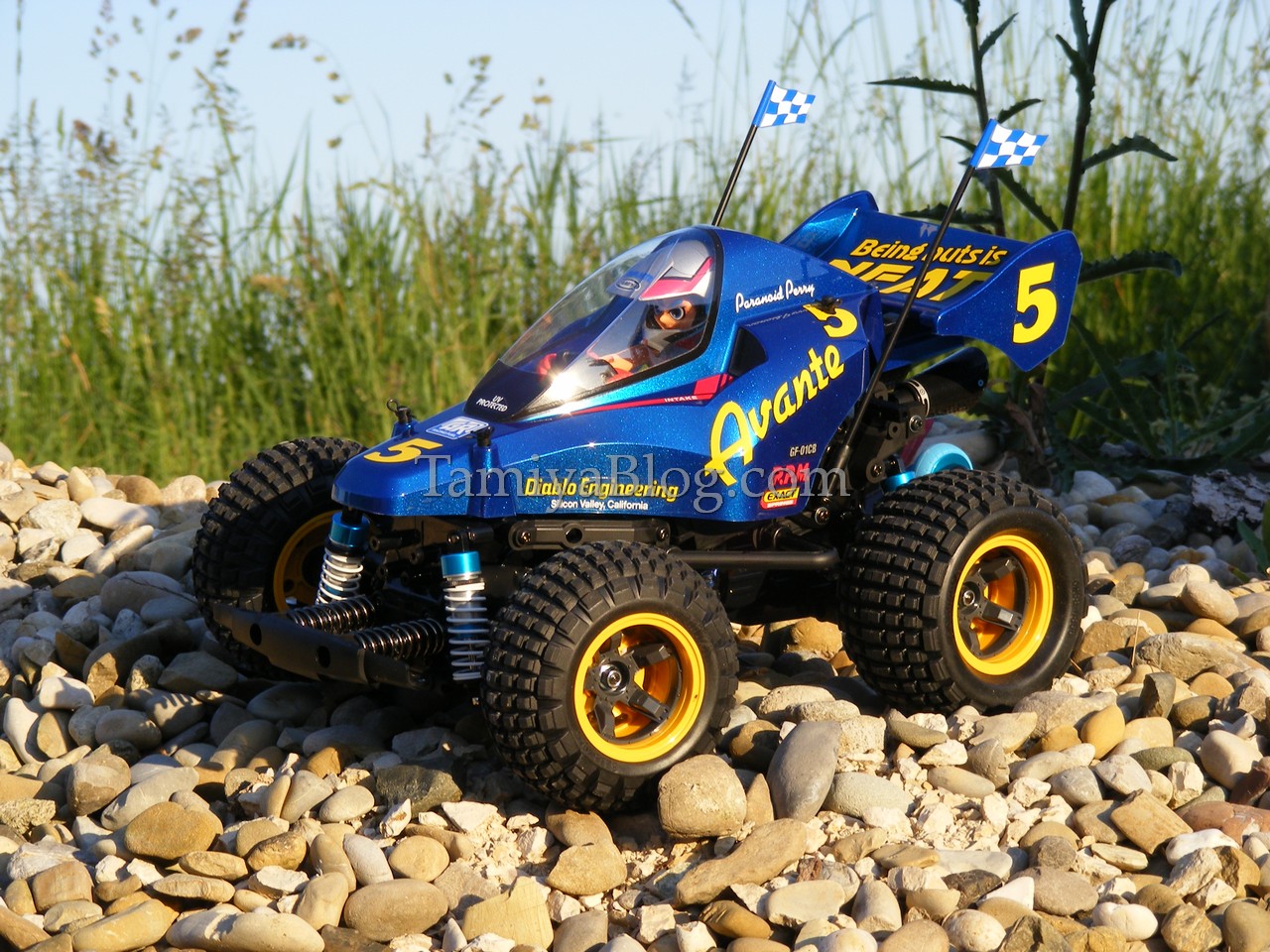

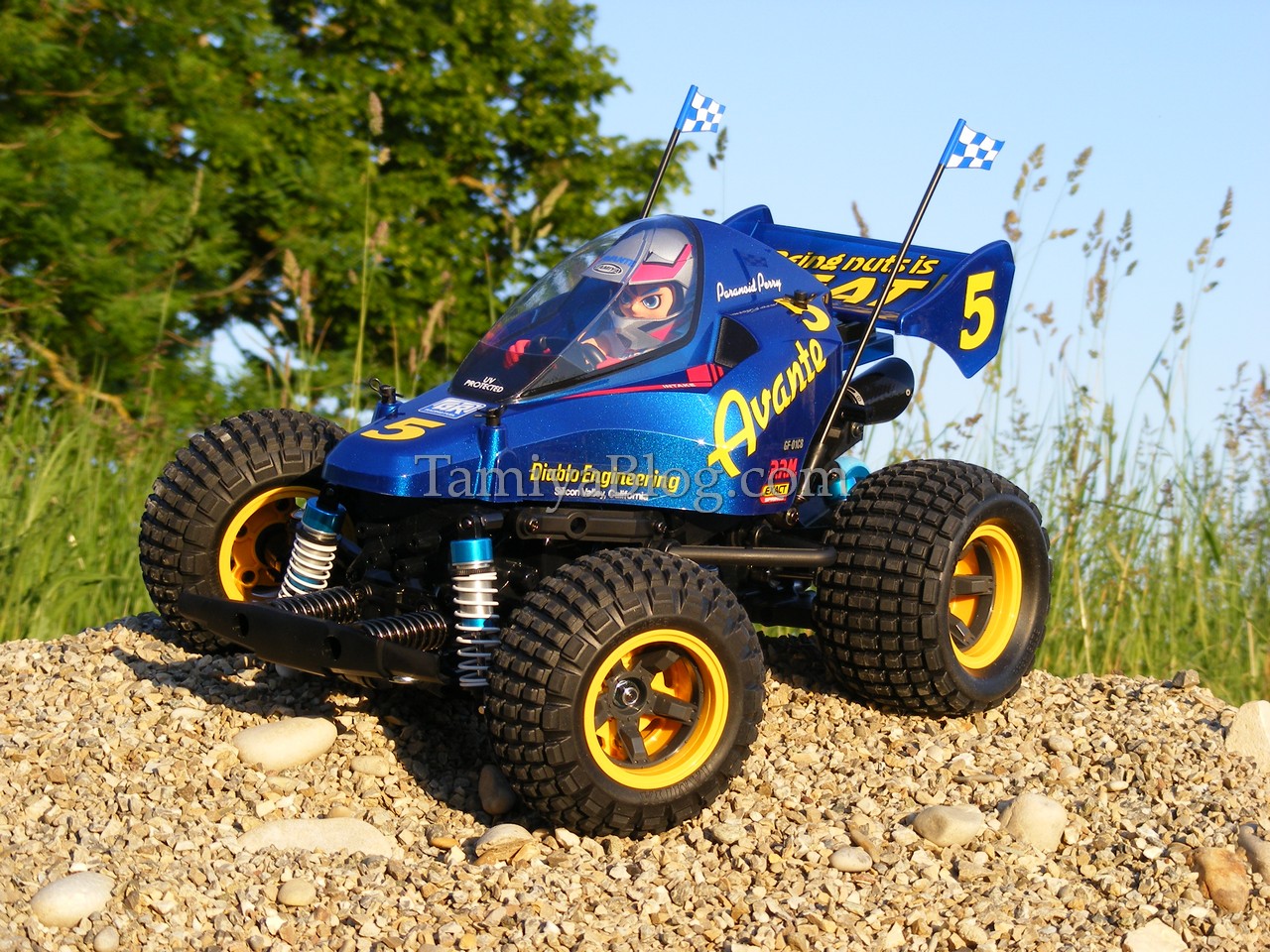

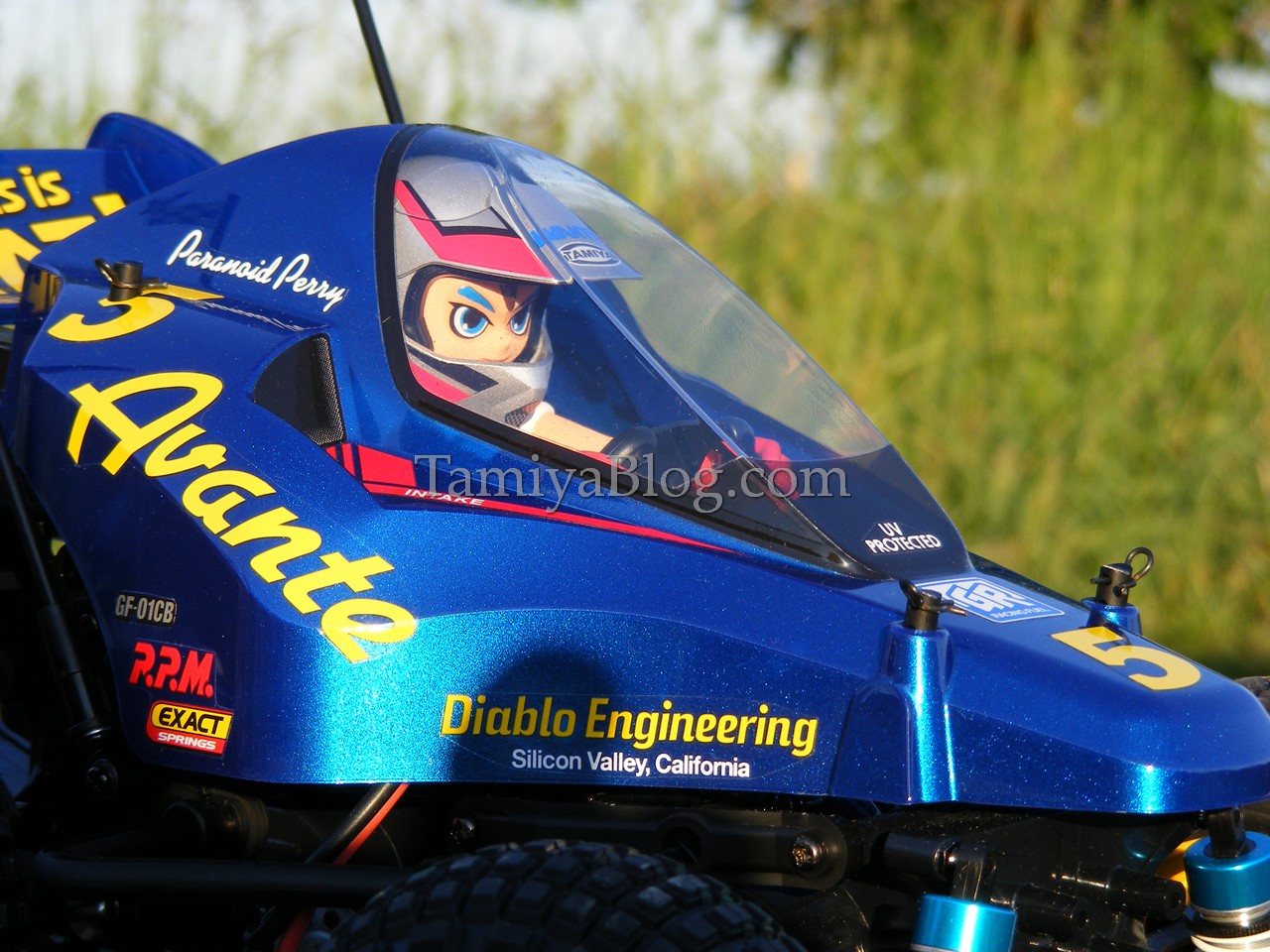

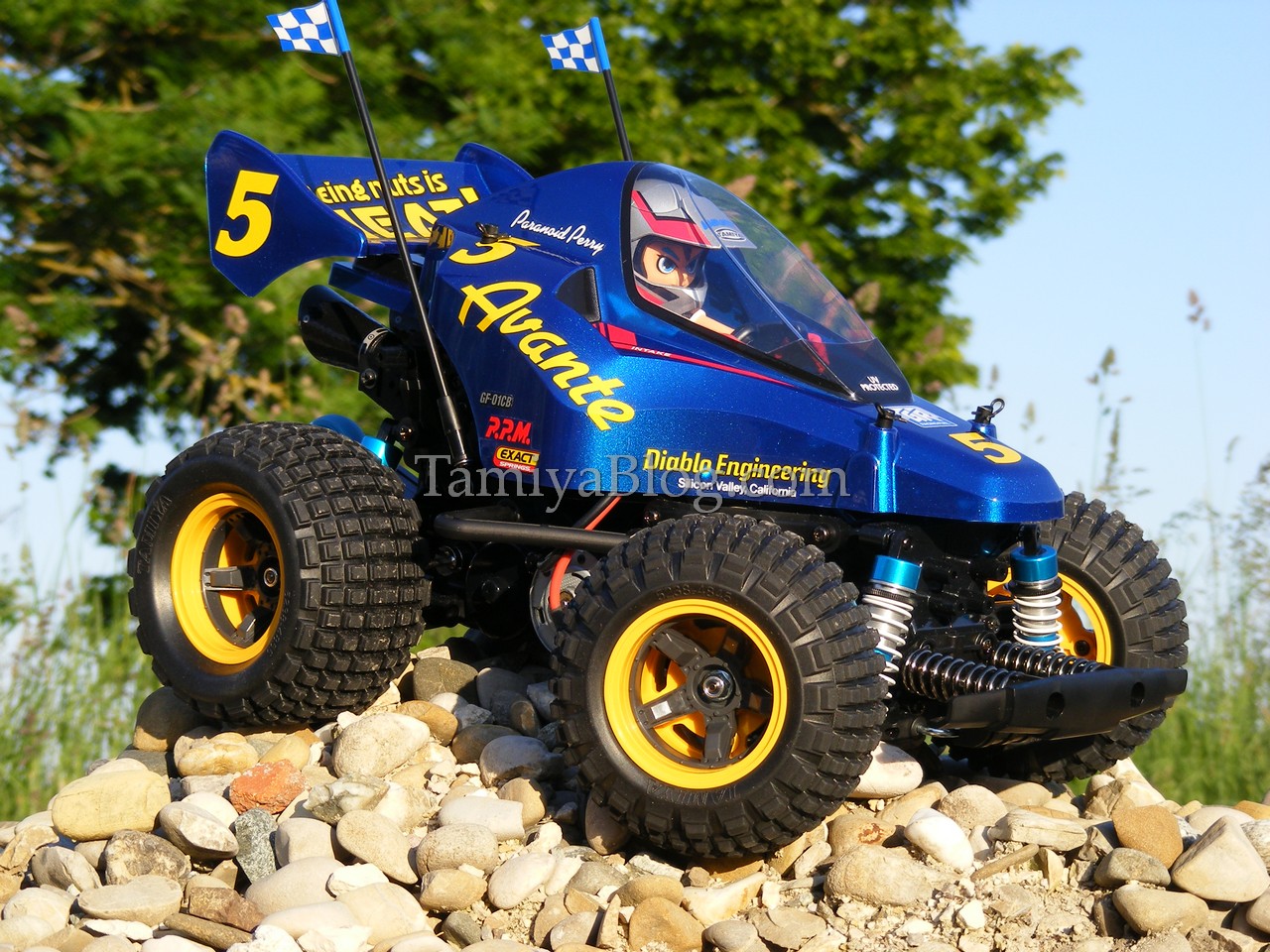

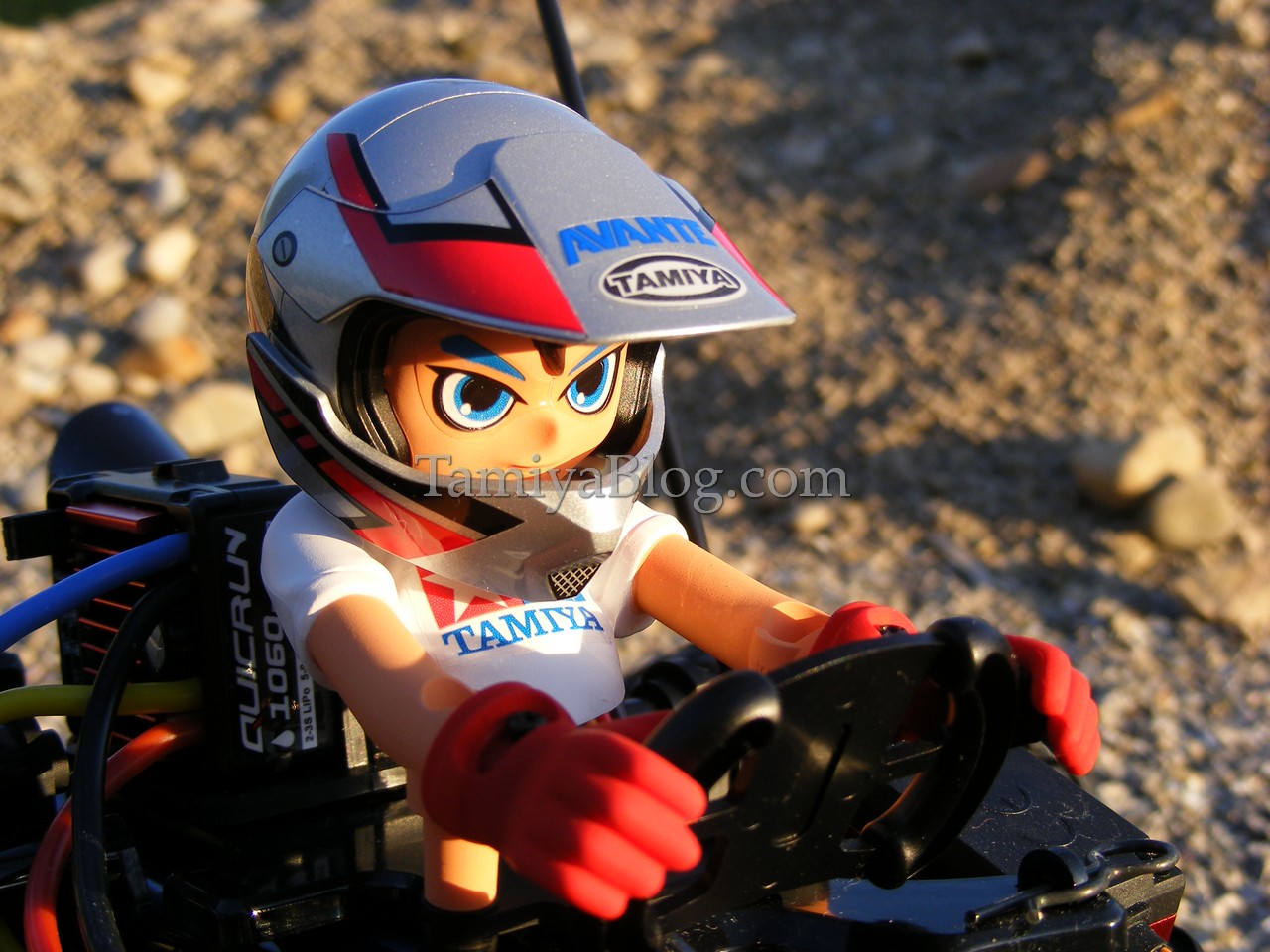

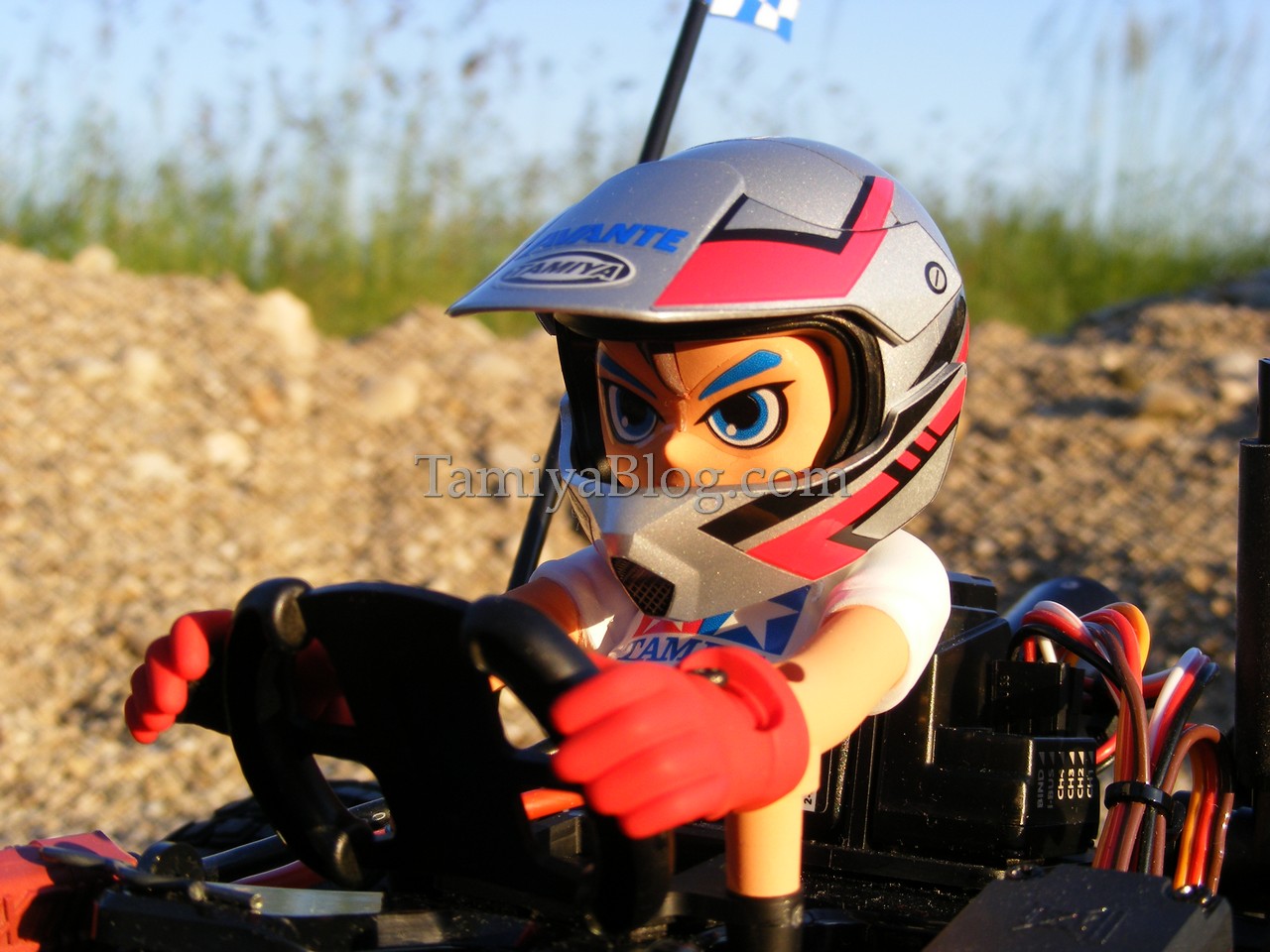

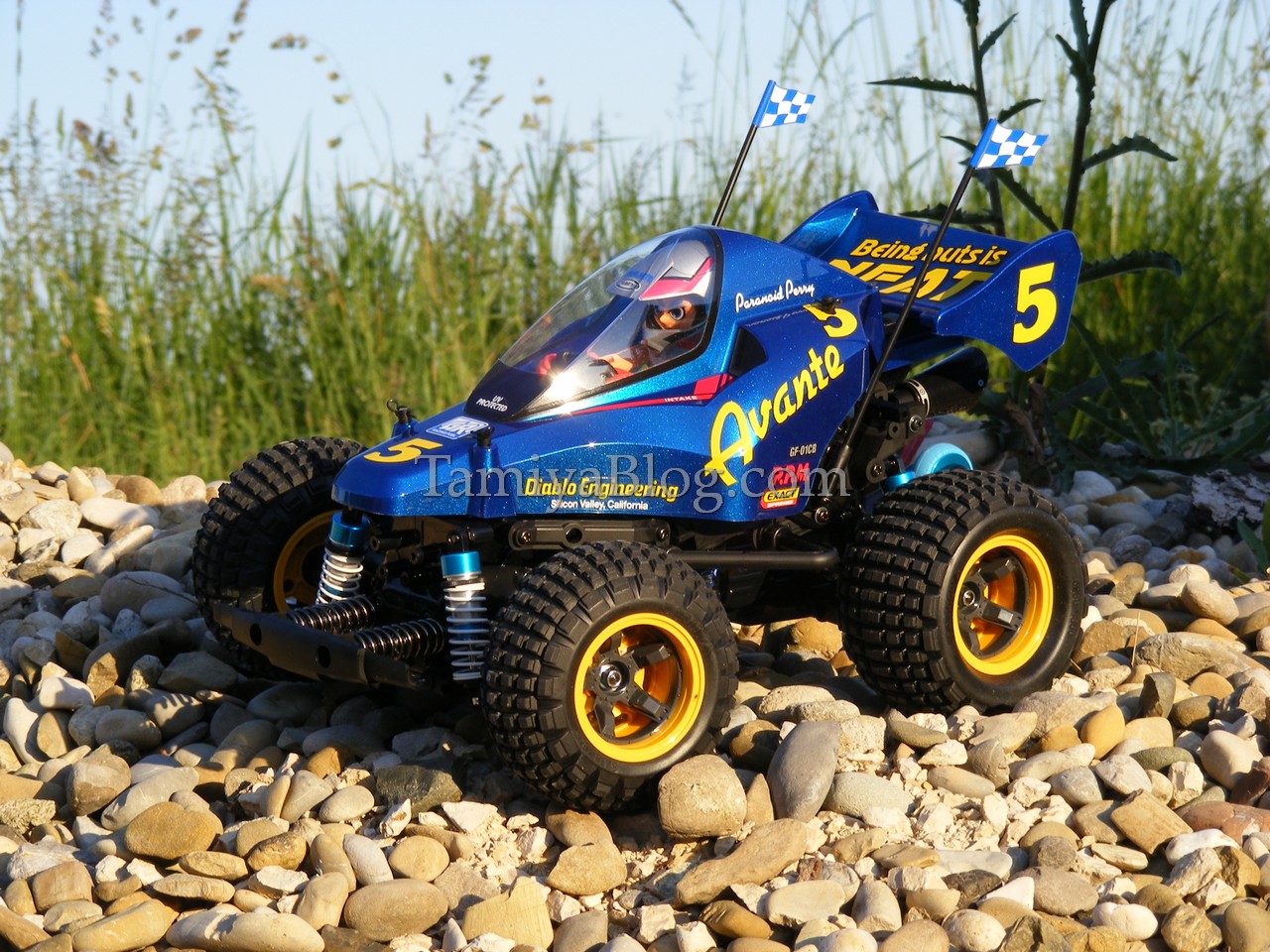

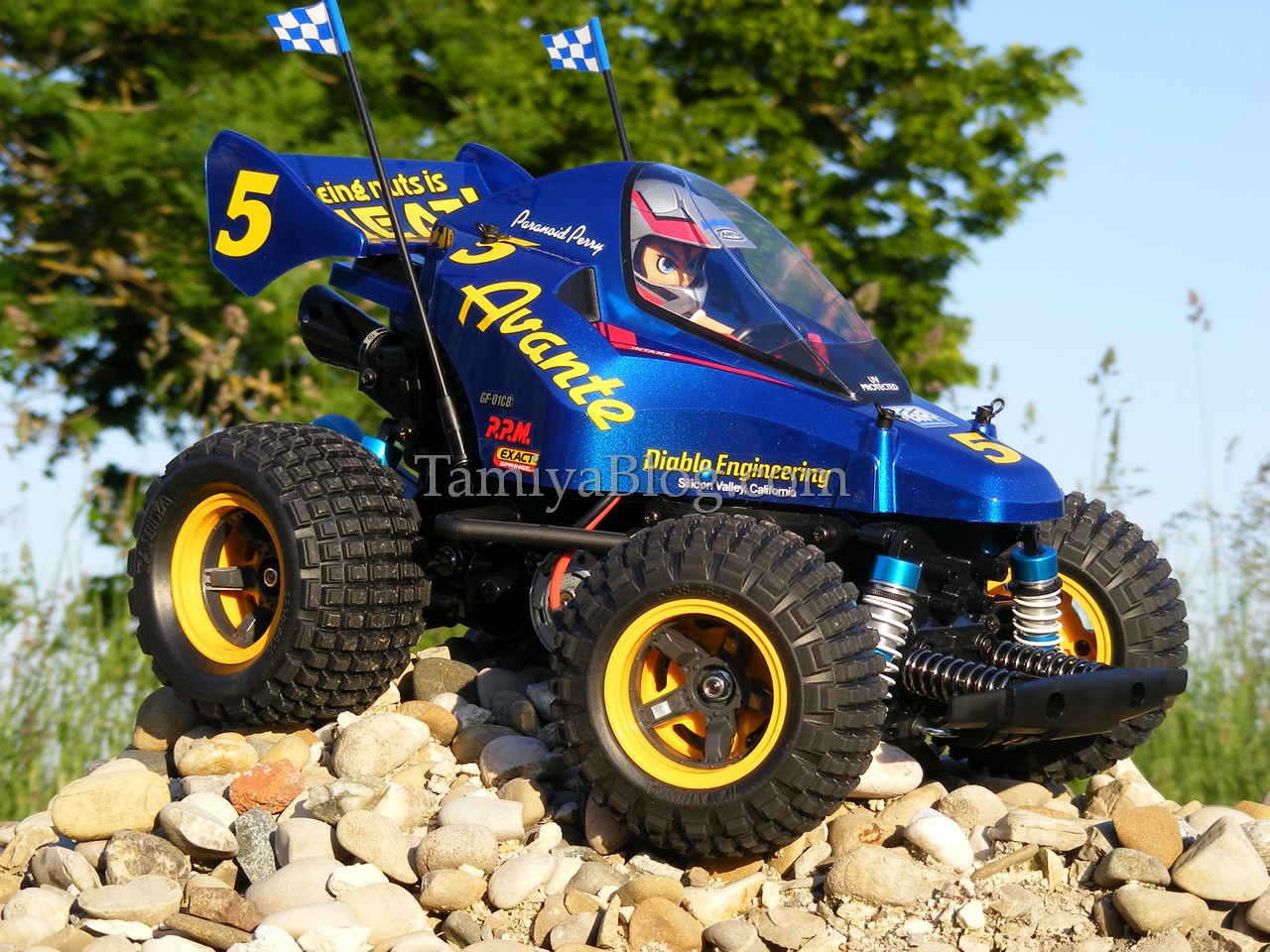

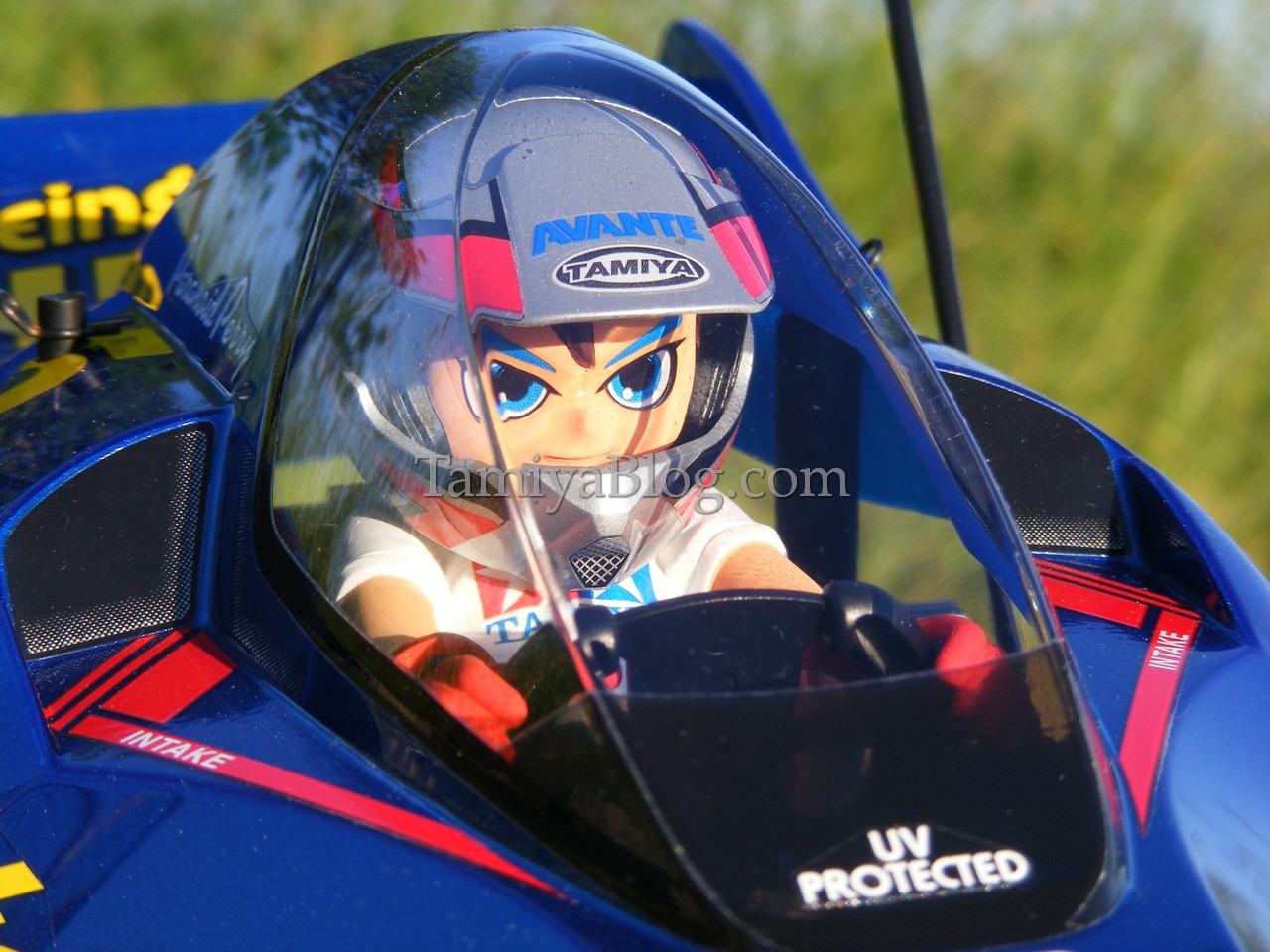

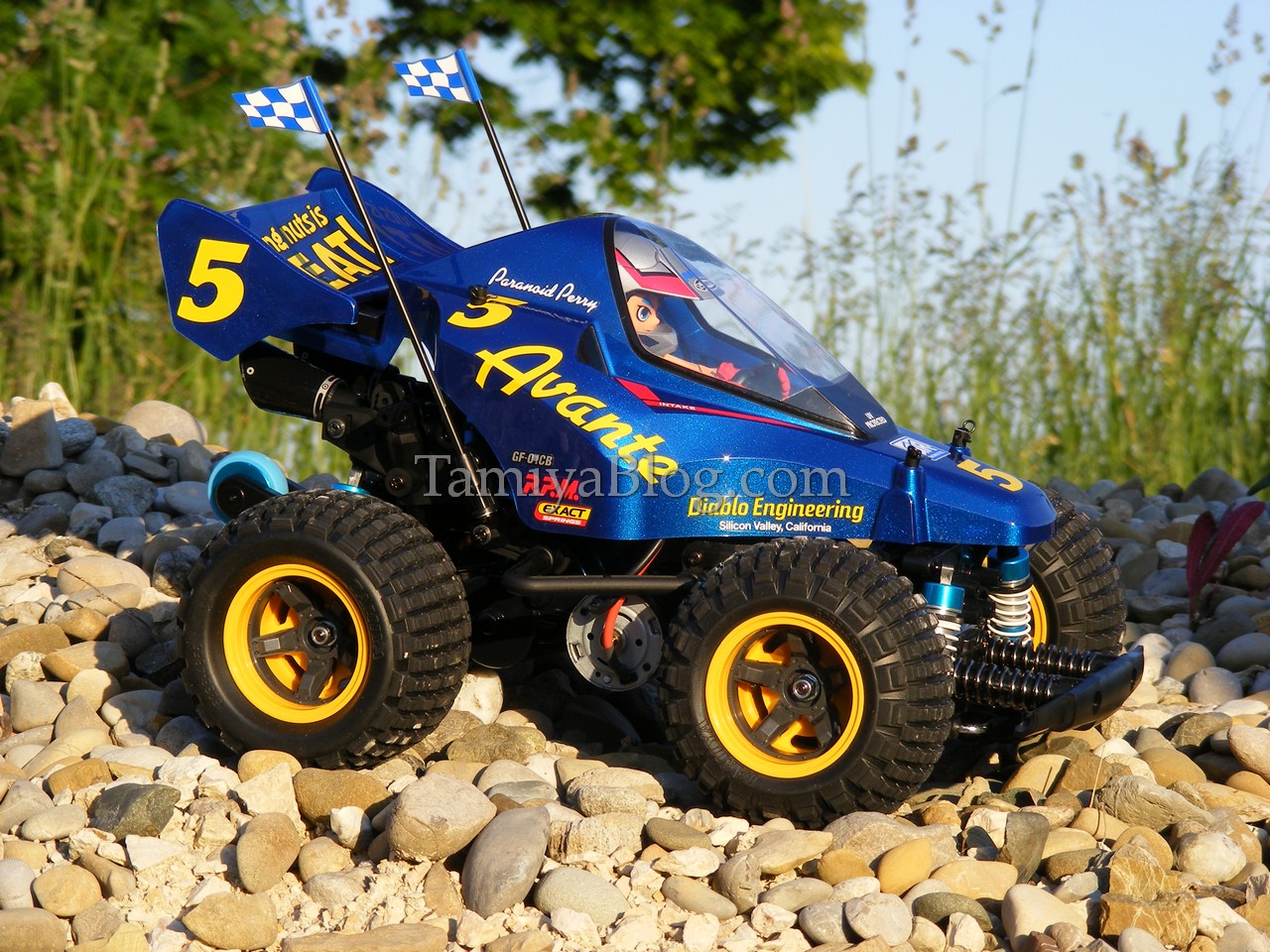

Tamiya mastered it with flying colors. For the wanted comical look, the body was of course compressed as usual. Nevertheless, the body adapts wonderfully to the chassis, like the body of the original Avante. The already well known beautiful driver figure from pdc designworks, which is already included with the kit, fits so perfectly under the pilot’s cockpit, and literally cries out to start driving right away. Exhaust pipes now come in a carbon look and underline the professional Hi-Tech look of the Avante. But let’s take a look at the technical side.

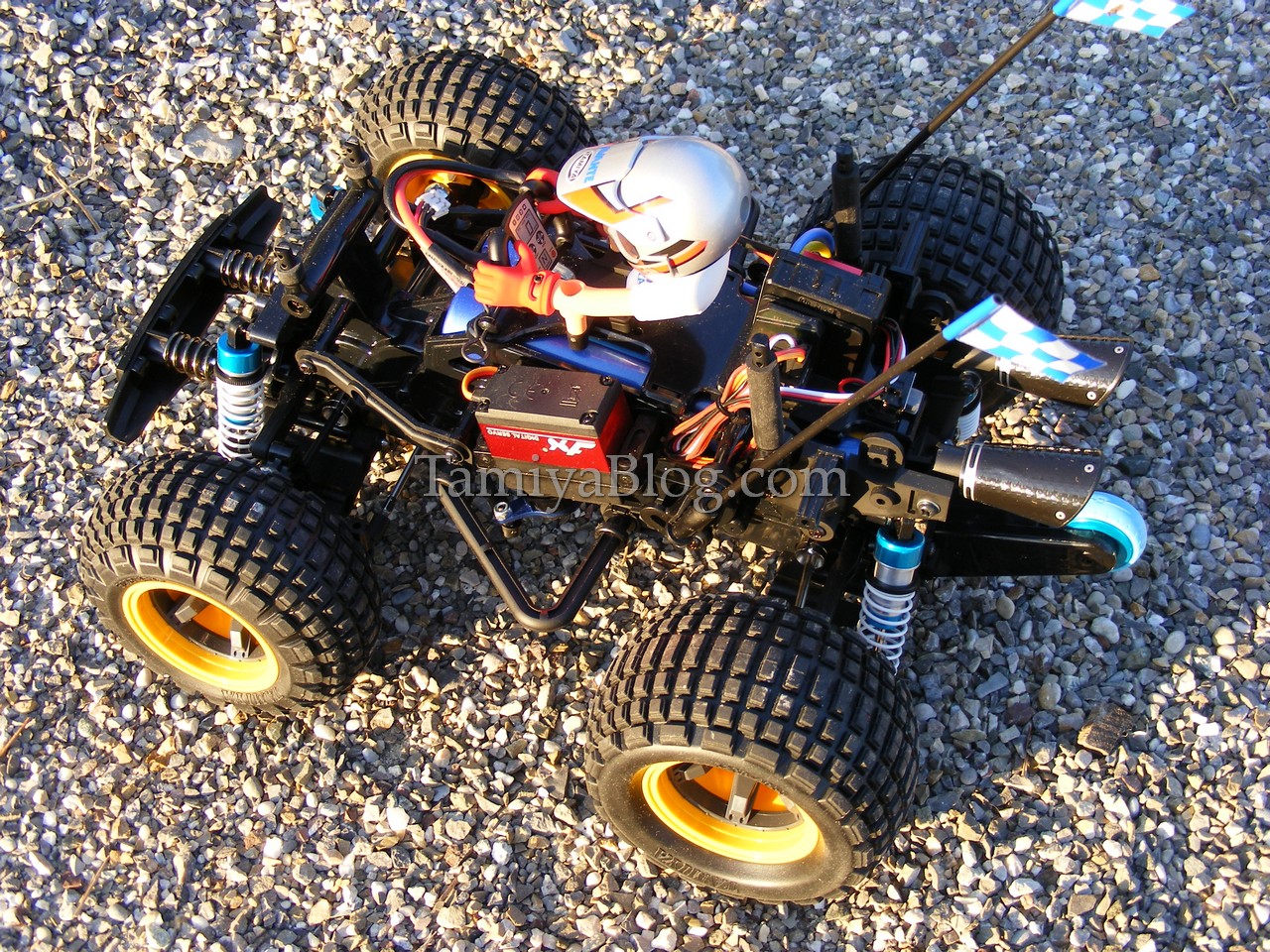

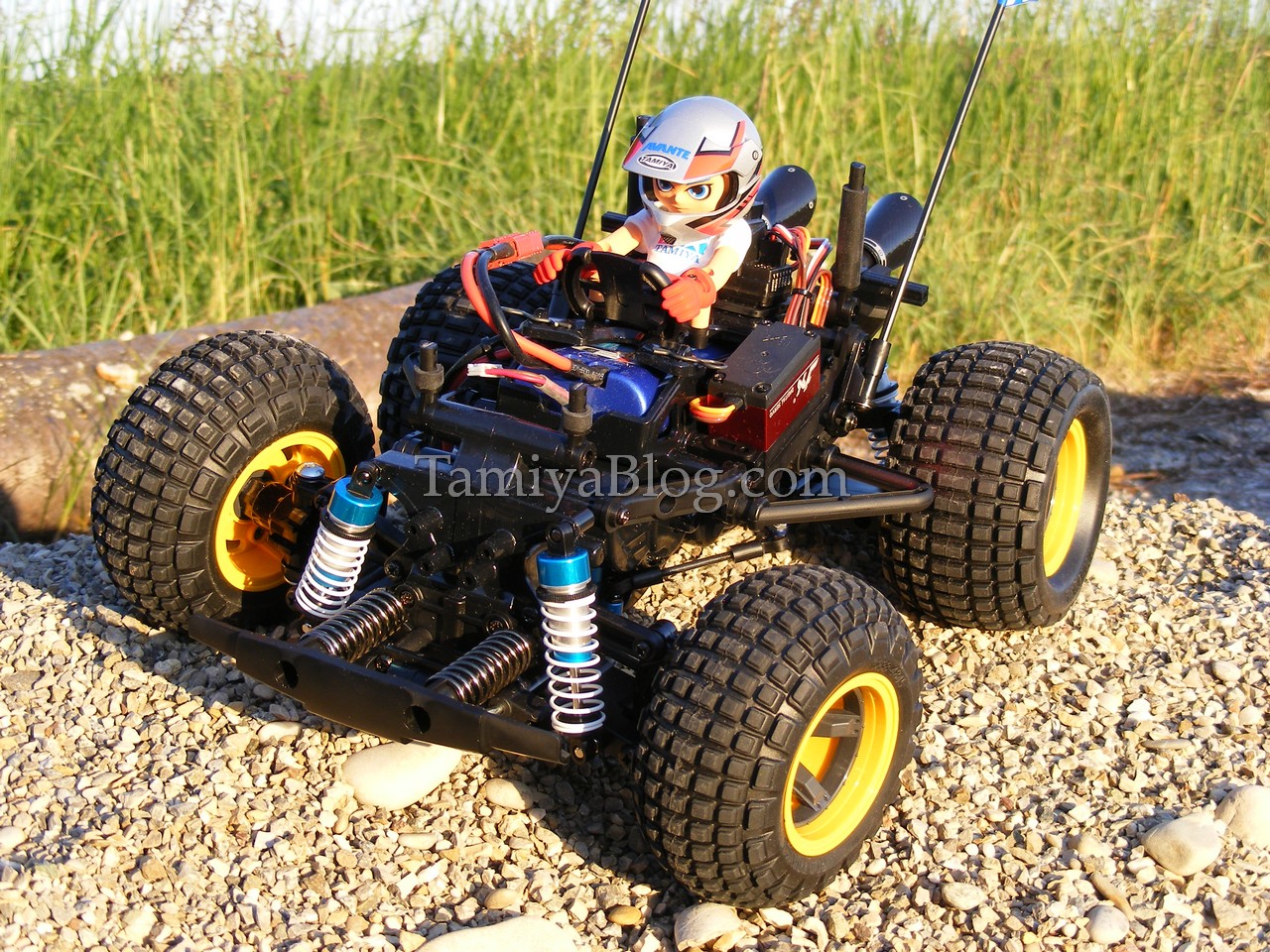

It is very interesting to see how Tamiya adapted the well-known GF-01 chassis to the comical buggy set up. The main frame, which also serves as the gearbox, has been provided with additional fastening points on the rear for the new body bracket. The wishbones were of course adopted from the WR-02CB Comical models. A new slim bumper rounds off the concept harmoniously. A number of headlights can also be mounted on this bumper. But we decided against it. For a clean look. Oh, i almost forgot. Tamiya donated new tires to the Comical Avante. And how we love this design. Let´s hope for more models using this type of tire.

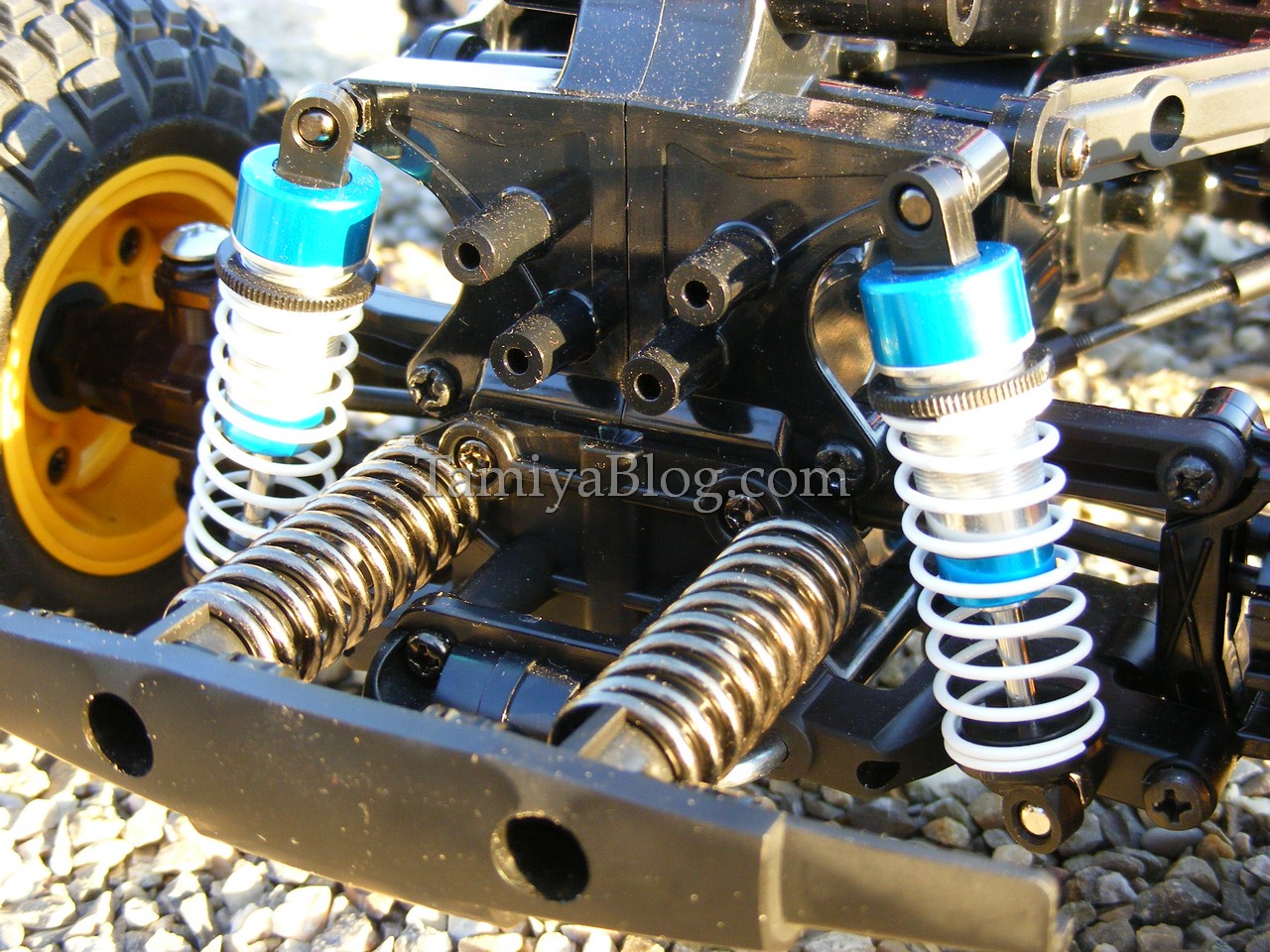

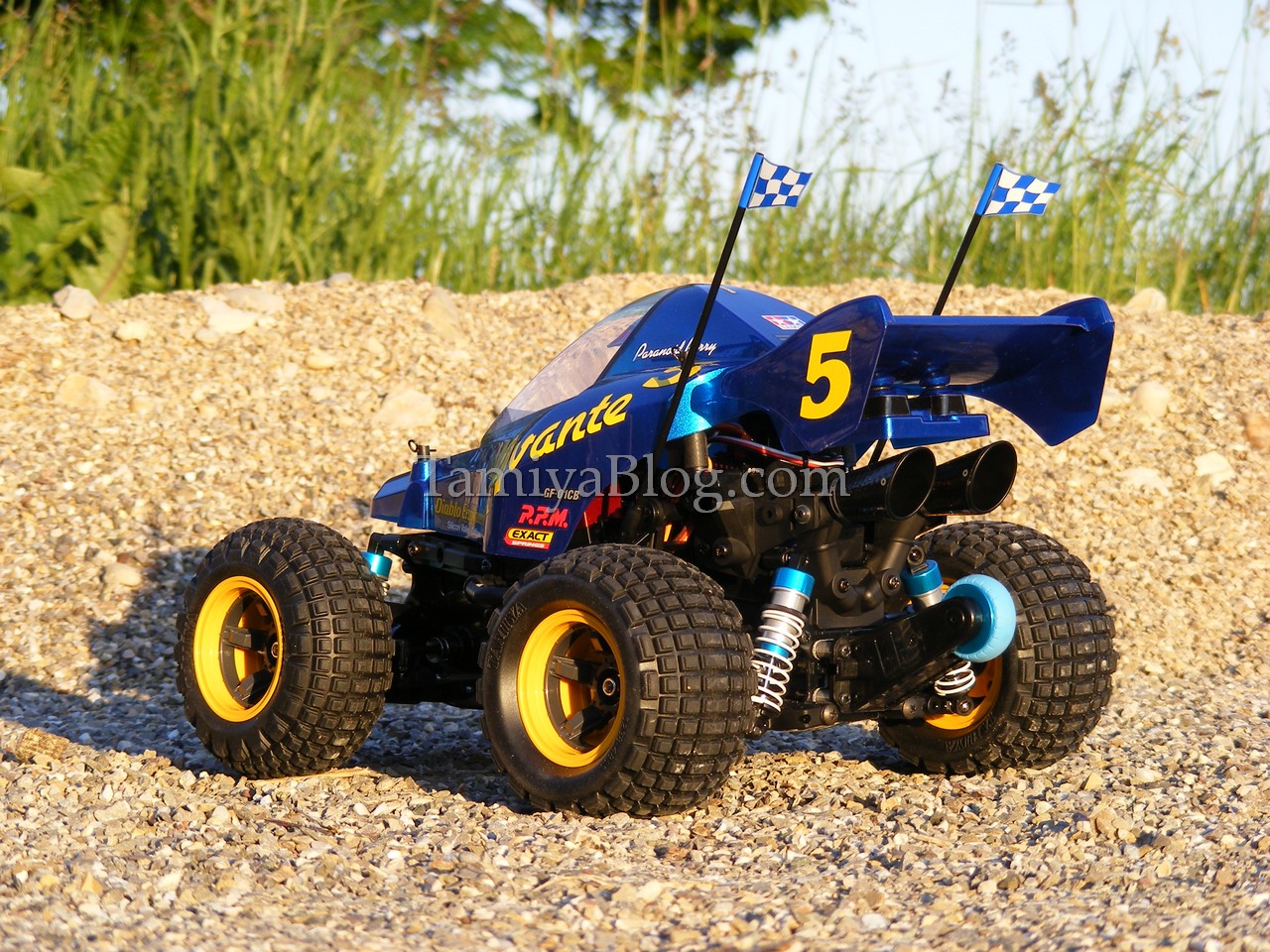

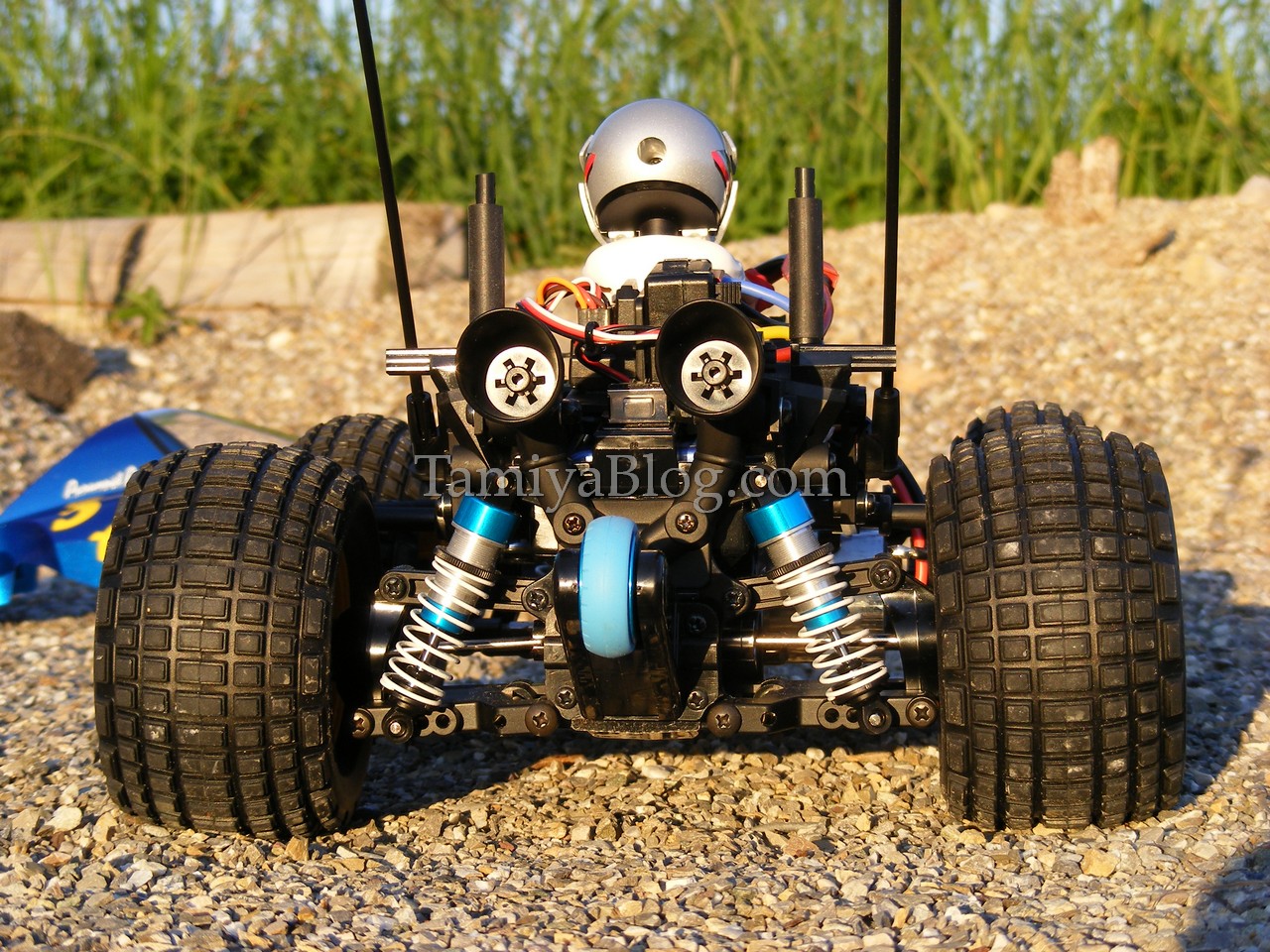

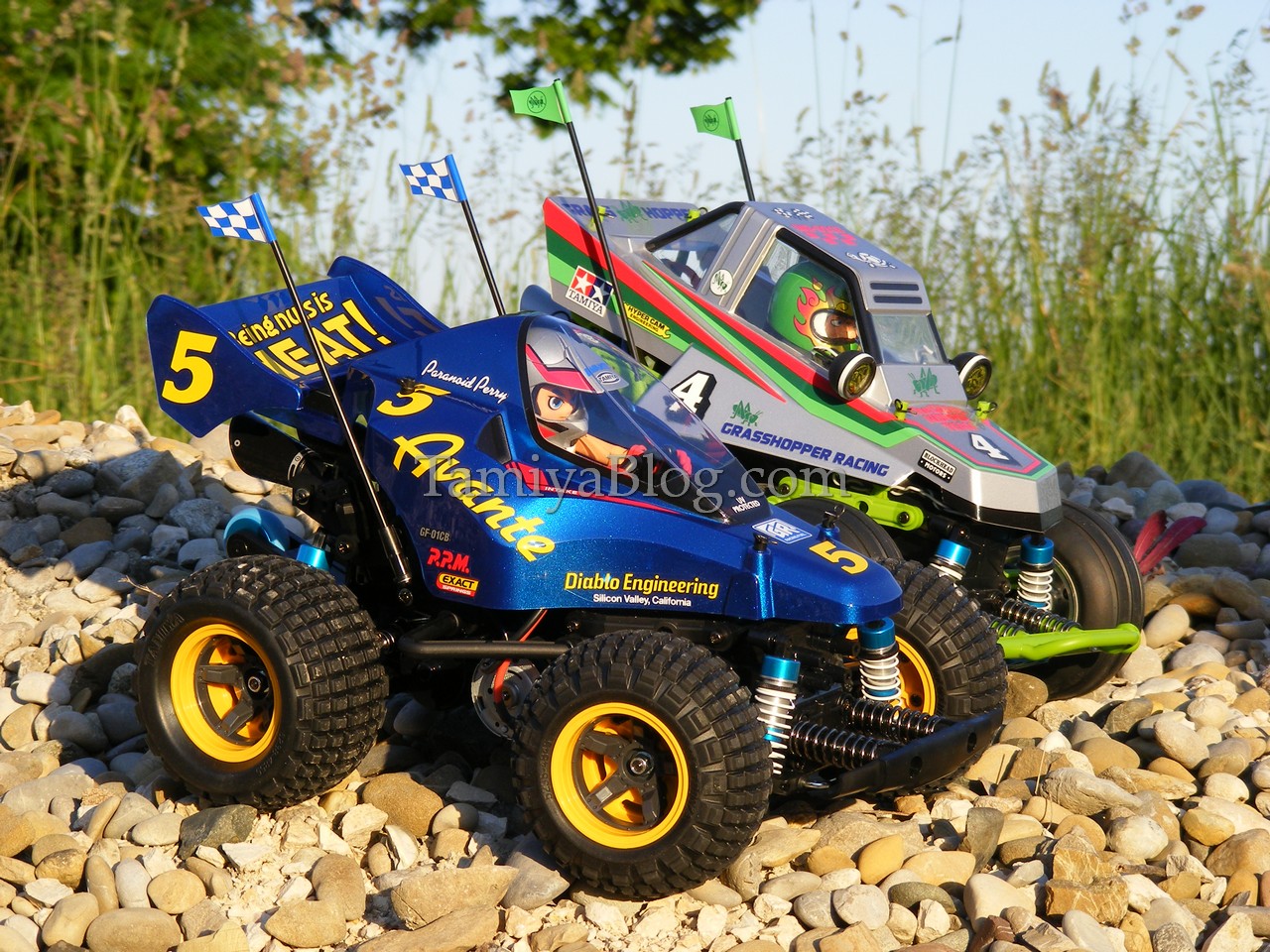

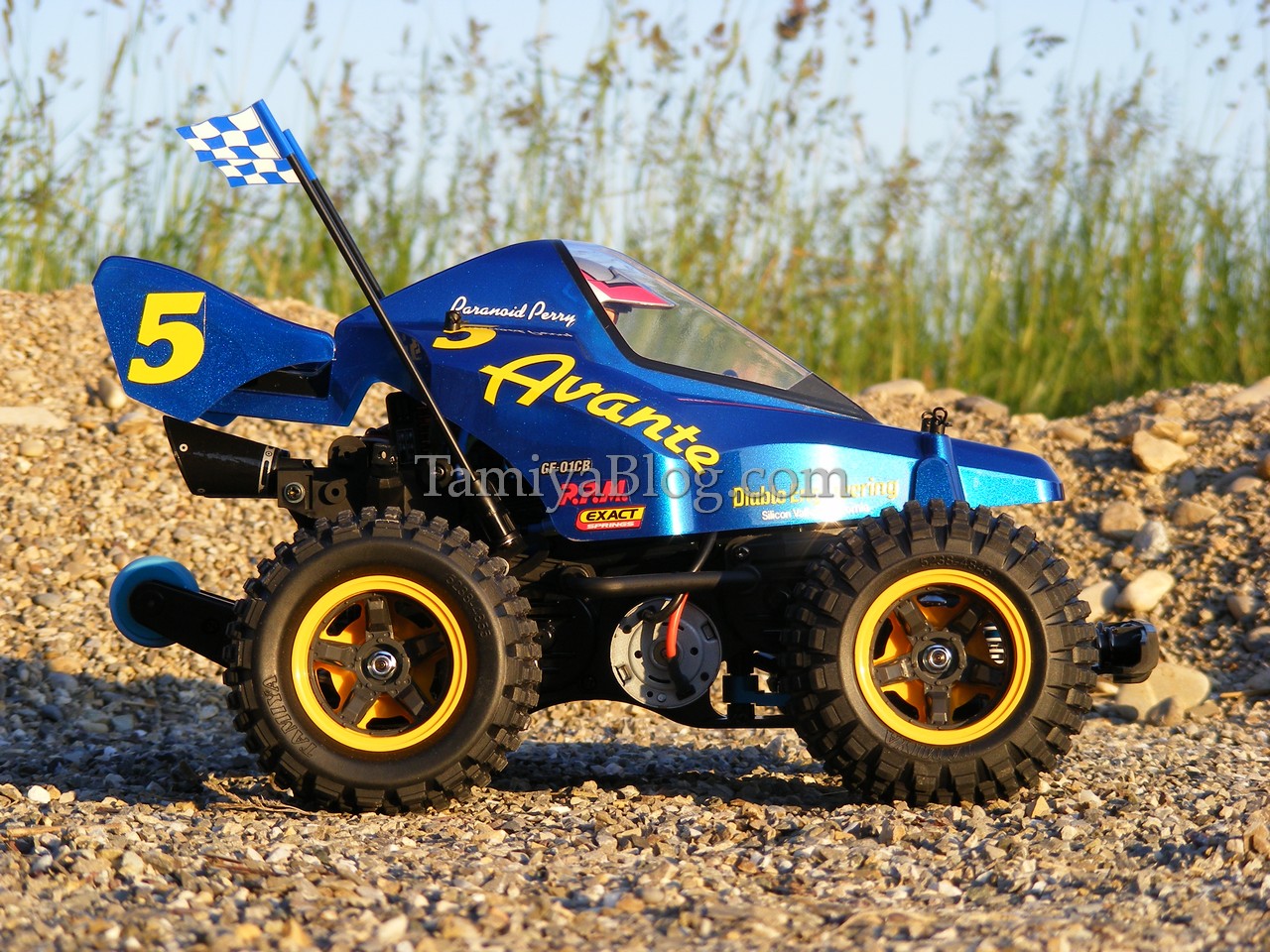

As with the Comical Grasshopper, we also donated a few sensible Tamiya Hop Ups to the new Avante. Starting with the complete ball bearing set, via the Sport Tuned motor, in combination with a 20 tooth motor pinion. Although the Tamiya Comical models are all already equipped with CVA oil shock absorbers, the Avante is no exception, we have again installed the great GF-01 aluminum damper set. It just looks fantastic and it works that way. GF-01 steering arm and Tamiya Hi Torque Servo Saver with aluminum servo horn make steering much more precise. Incidentally, we highly recommend installing the 50808 TG10 wheel axles, also recommended by Tamiya in a supplementary sheet. These cause a widening of the track. The thicker hex adapters, which are required for this are already included with the kit. As a result, the Comical Avante does not tip over so quickly and simply looks even better. The optional Wheelie Roller Set in blue rounds the thing off perfectly to the rear. This time, we did the original paintscheme, because the body comes already pre-painted with this kit. But you have to cut it out. And application of the stickers is needed too. The original color scheme can only be called truly brilliant. For those who want to create their own color scheme, there will be an unpainted/clear bodyset available soon.

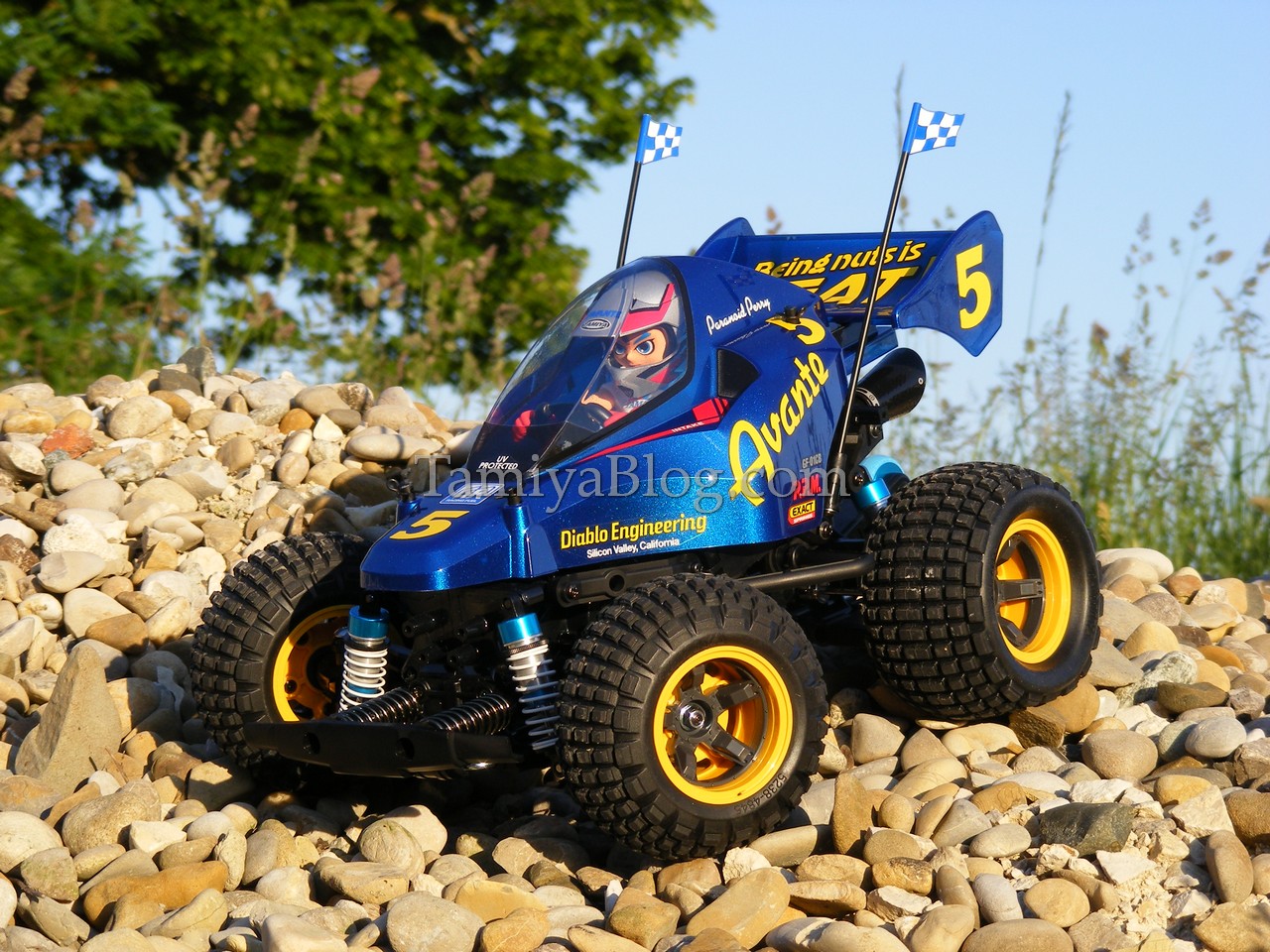

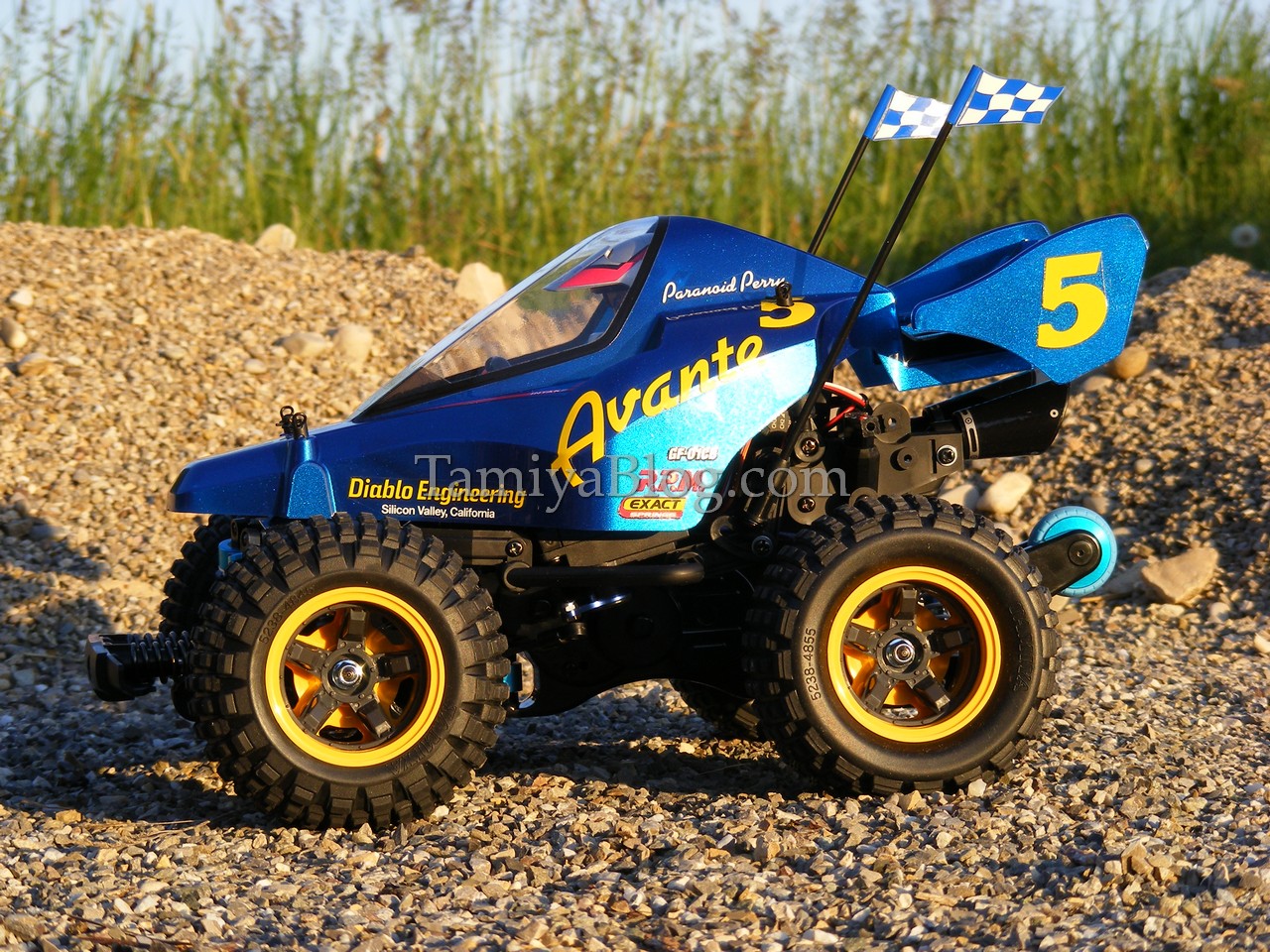

But no more words now. Enjoy the Comical Avante !

With our Set Up, it´s a blast to drive. And with any doubt, it´s the best performing Tamiya Wheelie/Fun car, we have driven so far.

Upon requests from some of our valued readers. This is a list of genuine Tamiya Hop Up parts, we´ve used on this car:

54924 GF-01 Ball Bearing Set

50808 TG10 Long Wheel Axle

53509 Hard Flourine Coated 0.6 Aluminum Pinion (20T/F201)

54670 Aluminum Oil Damper 4pcs Blue For GF01 WR02

53974 TRF 501 Front Spring Set

54588 GF-01 Aluminum Steering Arm

54586 Lightweight Gear Shaft 5x50mm For GF-01 WR-02 WT-01

51000 Servo Saver Hi Torque Type (Black)

54121 Aluminum Horn for Hi Torque Servo Saver

54473 Aluminum Wheelie Roller Set for WR-02 WR-02G

5 thoughts on “Comical Fun Goes 4WD – Building the Tamiya Comical Avante GF-01CB

  1. Rex

    Nice, would like to make a similar build one day. Exact product numbers for the hop-ups would be nice. Also what springs are used? They are not the stock ones, and springs are not supplied with the GF01 damper set.

  2. dunebuggy Post author

    Hello Rex, really a good idea. We´ve just added a complete list of Hop Up parts with product numbers, we´ve used on this car.
    The springs are 53974 TRF501X Front Spring Set. The official recommended Hop Up Springs for the GF-01 shock set. We´ve used the medium yellow type on the rear and soft type on the front end of the car.
