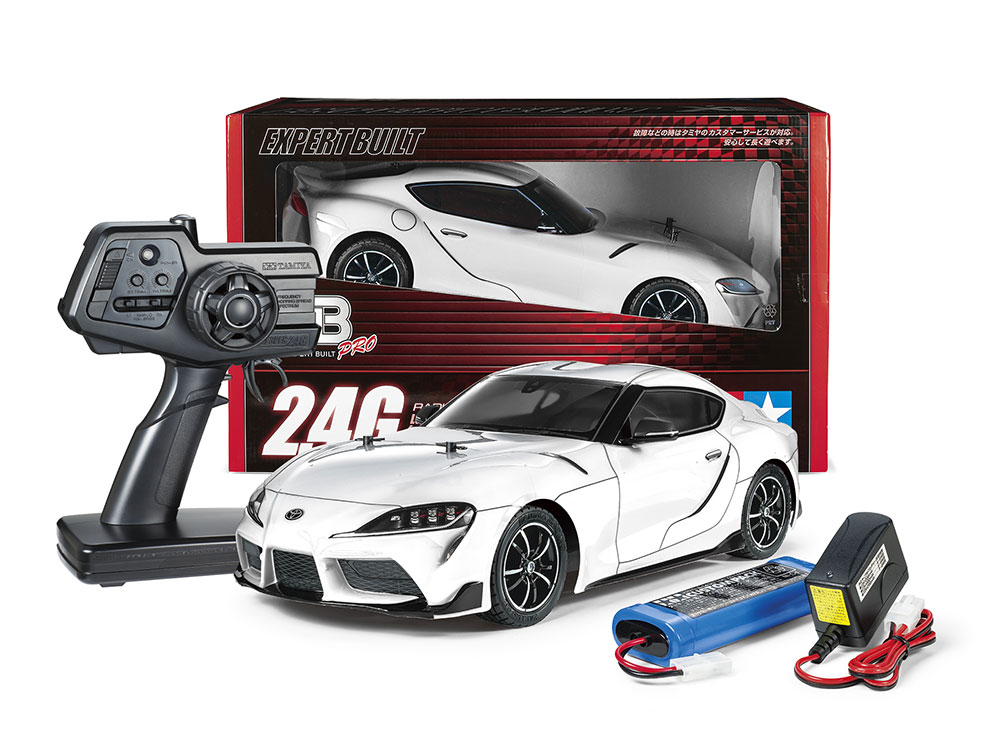

Tamiya 57919 1/10 RC XB Toyota GR Supra (TT-02 Chassis) White


RC drive a popular 2-seater sports car!
It is a completed electric radio control car that reproduces Toyota’s 2-seater sports car, GR Supra, which made its world debut in January 2019. The body that realistically reproduces the characteristic shape of the double bubble roof, raised front and rear fenders, duck tail of the rear gate, etc. is made of lightweight and shock resistant polycarbonate. The main body is painted white, the window is smoked, and the rear diffuser is painted black. In addition, the front and rear light cases are composed of separate parts of polycarbonate to create a three-dimensional effect, creating a fearless look. In addition, the door mirror also reproduces three small protrusions on the side. The high-scale finish enhances the enjoyment of running.

Adopted shaft 4WD, TT-02, which is easy to operate and enjoys setting.
The assembled chassis is a shaft drive 4WD TT-02 with excellent steering stability due to a well-balanced design with a running battery on the left and a motor on the right. The suspension has four independent double wishbones. The front and rear sealed gearboxes incorporate a resin 4-pinion type differential gear that produces a smooth differential. In addition, the wheel hub has a brake disc-like design, and is equipped with a front bumper support that resembles the bumper of a racing kart in an actual vehicle. In addition, the wheel base, vehicle height, and tread can each be selected from two types by changing the parts, and settings such as a motor mount with a wide range of 10 gear ratios are also OK. The black 10-spoke wheels have silver stickers on some of the rims and spokes, giving a finish that is similar to that of a real 19-inch wheel. The tire is equipped with a racing radial carved with a tread pattern. Also equipped with ESC (Electronic Speed ​​Controller) that allows you to enjoy smooth speed control both forward and backward.

Using 2.4G R/P that can be played easily by multiple units
A wheel trigger type transmitter, 7.2V battery for running, and a charger, which are perfect for controlling the car as well as the completed car body, are also set. The RC mechanism is crystal replacement etc. Adopting a 2.4GHz radio set that you can easily enjoy with multiple units without the need for band adjustment. 2.4GHz, which is also used for computer wireless LAN, has a 1:1 correspondence between the transmitter and the receiver (vehicle body), so there is no concern about interference, and the transmitter and receiver are already paired. There is no need for troublesome setup work. The transmitter uses a grip cover and a trigger cover. It can be adjusted by attaching and detaching it, and it is a structure that is easy to operate even with small hands.

Basic specifications
●Length: 457mm, Width: 188mm, Height: 133mm ●Wheelbase 257mm ●Tire width/diameter = front and rear 26/66mm ●Frame = bathtub type ●Drive system = vertical motor/shaft drive 4WD ● Differential gear = front and rear resin 4 bevel type ●Steering = 3-division tie rod type ●Suspension = 4-wheel double wishbone ●Damper = front and rear friction ●Gear ratio = Kit standard 8.27:1 (10 kinds of gears from 11.38:1 to 7.28:1 in combination with optional pinion) Ratio can be selected) ● Motor = 540 type ● Speed ​​controller = ESC (Electronic Speed ​​Controller) installed

Required separately
● 4 AA batteries for transmitter
