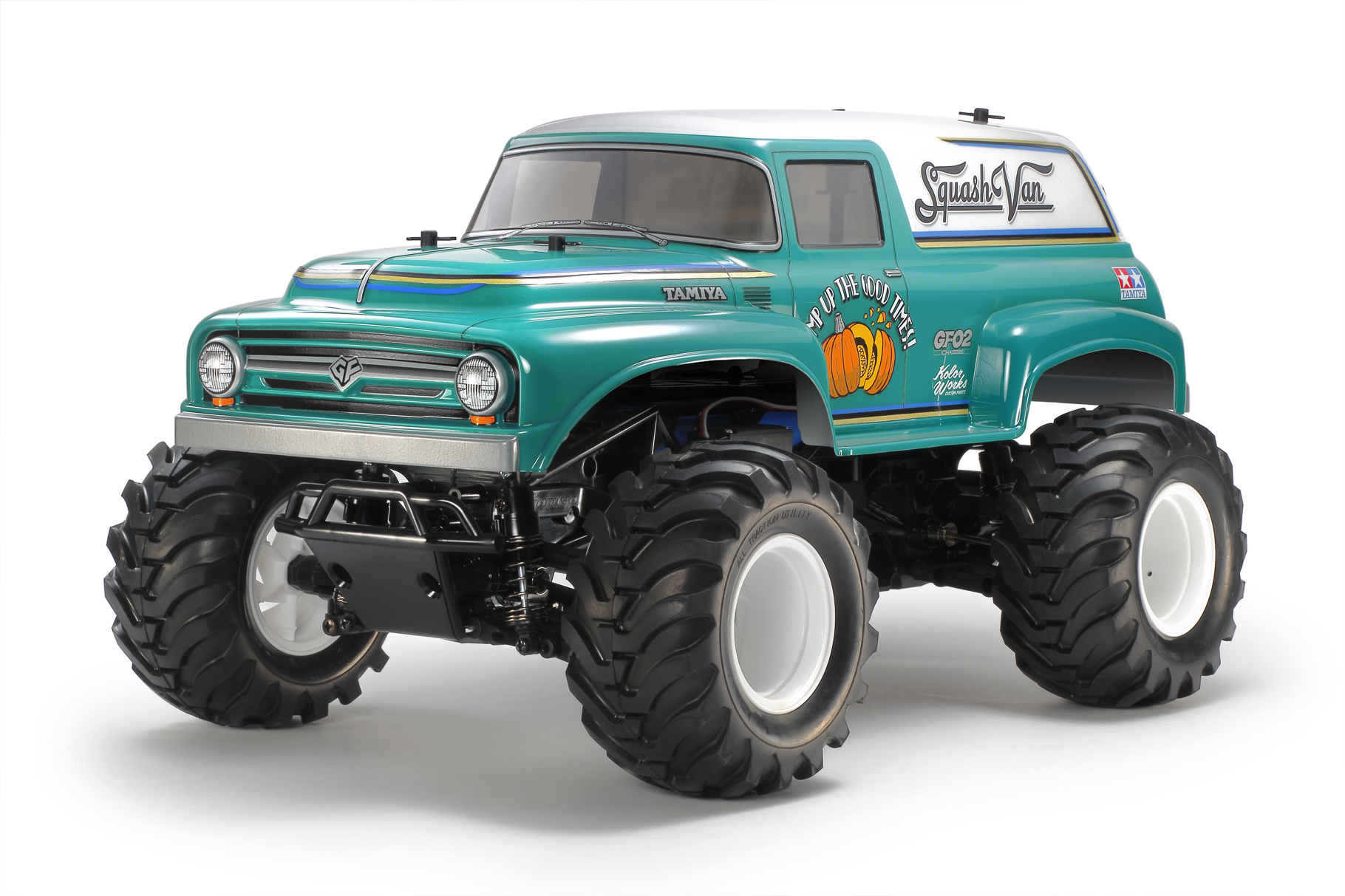

Tamiya 58725 1/10 R/C Squash Van (GF-02)
Tamiya is delighted to announce a new off-road car featuring big tires; the name is the Squash Van, and it is paired with a new gear-driven 4WD GF-02 chassis.
While the GF-01 chassis features a comical design, the GF[1]02 chassis employs a more realistic wheelbase and a frame with ladder / pipe motifs. This R/C assembly kit is inspired by 1950s American panel vans, and offers an excellent drive even on grass or uneven surfaces.
About the Model
This is a 1/10 scale R/C model assembly kit. Length: 454mm, width: 280mm, height: 238mm. Wheelbase: 267mm.
123mm large-diameter lug pattern tires allow powerful performance and superior handling feel.
Stickers feature designs such as squash illustrations, product logo, and triple pin stripes in gold, black and blue.
ESC & Type 540 Motor Included
About the GF-02 chassis
The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensures stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out.
Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods
Wheelbase
same length as the long CC-02 wheelbase chassis same body mount positions as the long CC-02 wheelbase chassis
Tread
F : 223mm / R: 221mm
Tyres
As Blackfoot [58633] 122.8mm diameter
Gear ratio
18T (18.03:1), 20T (16.23:1), 17T (19.09:1)
20T and 17T pinion gears are sold separately
Motor Guard included
Lower servo mount to enhance attachment durability and lower more central motor position for improved balance and weight distribution.

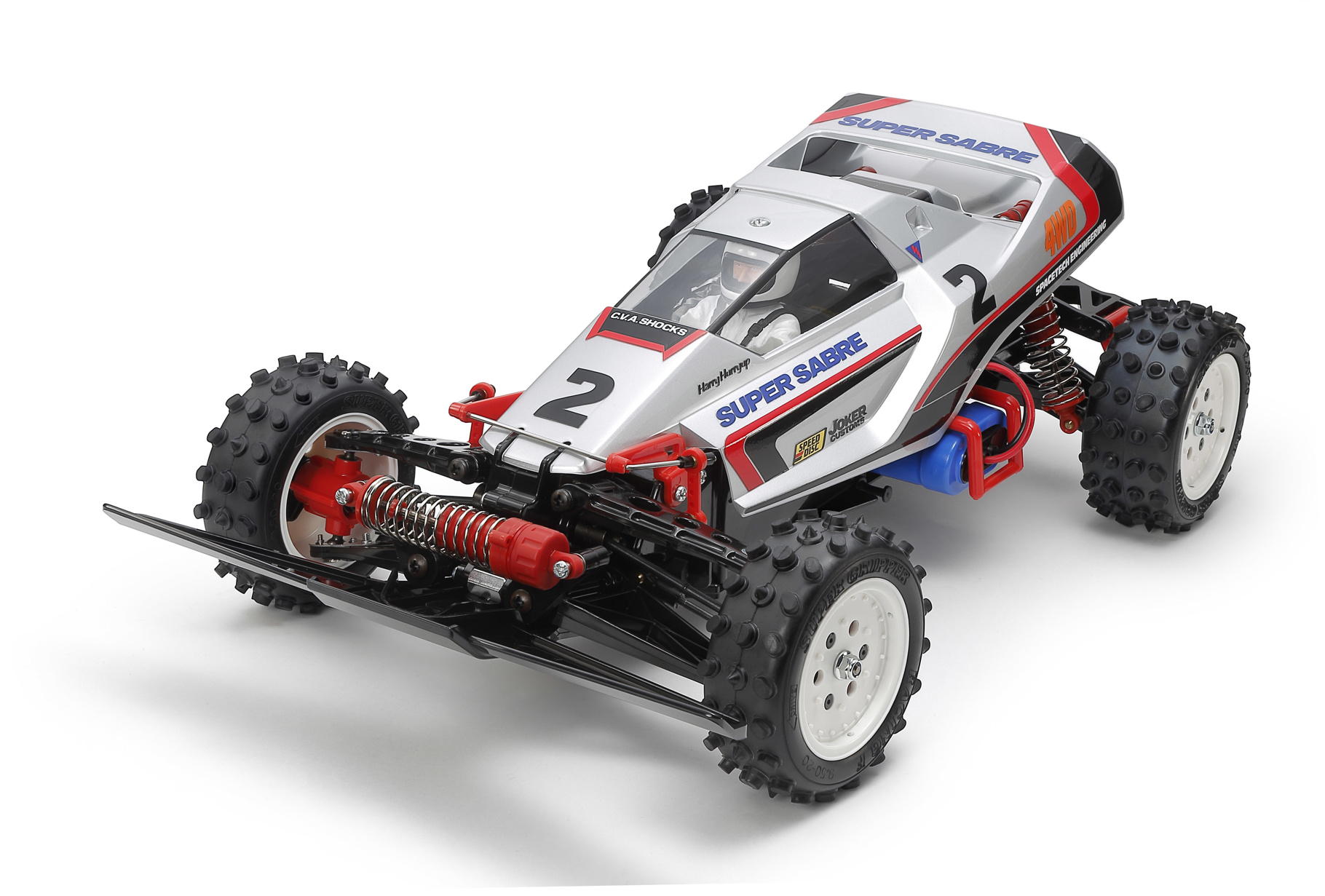

Tamiya 58728 1/10 R/C Super Sabre (2023)
Tamiya welcomes the re-released and updated version (this time, the body is pre-cut and pre-painted in sliver) of the Super Sabre, the original of which was released as Item 58066 in 1987. The Boomerang is a brother model with the Super Sabre, and they are different in body and damper stay shapes.
This R/C model assembly kit is a re-released and updated version of the Super Sabre, a beginner-friendly
buggy released in 1987. Length: 390mm, width: 234mm, height: 135mm.
The 0.7mm thick polycarbonate body from Item 58066 is fitted with the separate wing part, and is pre[1]cut and pre-painted in silver.
Shaft-driven 4WD gives speed and stability off road, and through corners.
Damper stay components are original of this product.
4-wheel independent double wishbone suspension employs CVA short dampers II with a front stabilizer to help get the most out of the 4-wheel drive.
ABS bathtub frame and other reinforced parts give superb durability and simplified maintenance.
Gearboxes are sealed to keep out dirt, and contain differentials for smooth cornering.
Please note that body requires application of stickers, cutting and painting of figure, and other work.
ESC & Type 540 motor included
